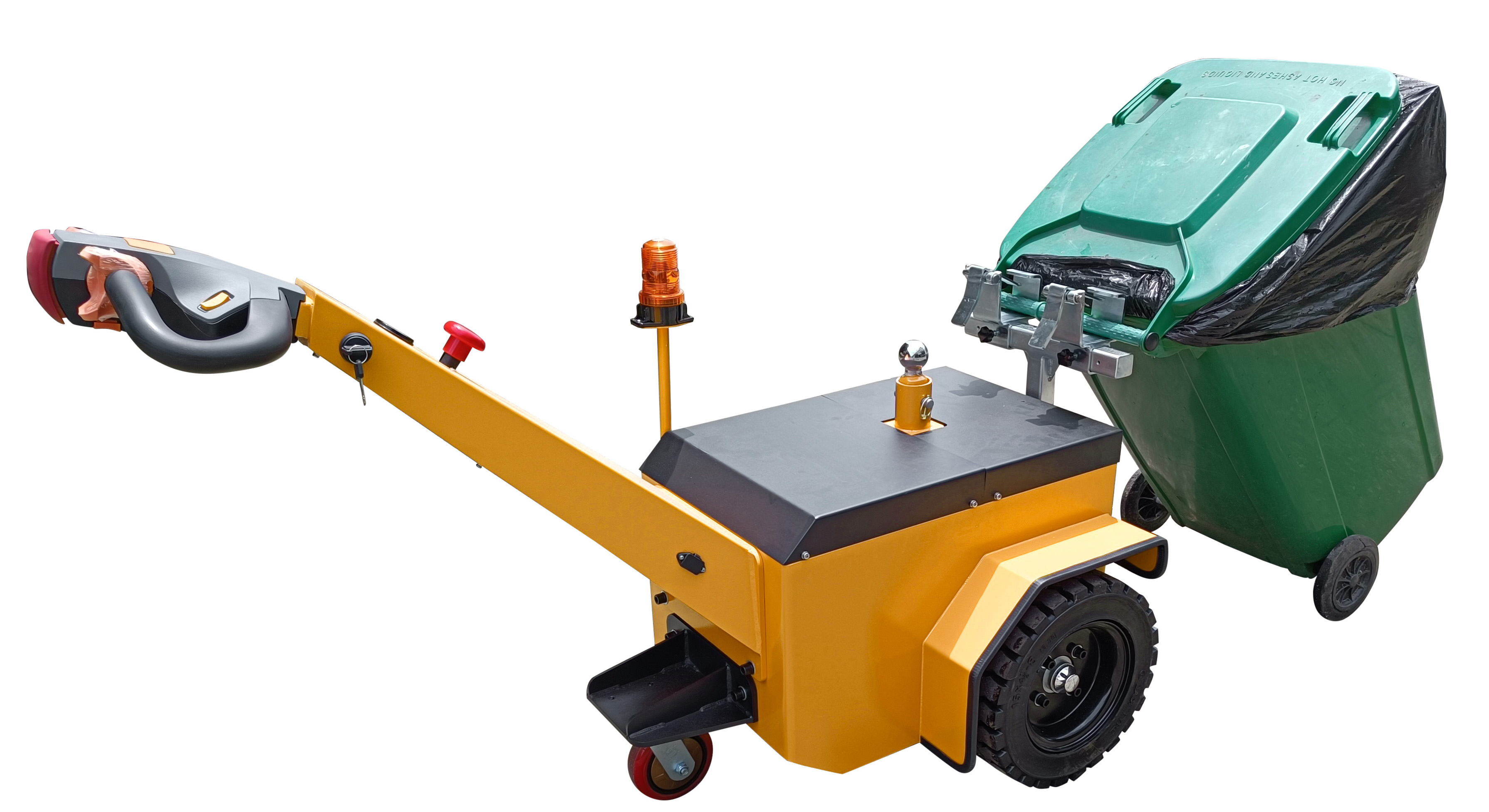

KL250 2500KG Electric Tow Tug
| Technical Parameters | |||
| Characteristic | |||
| 1.1 | Model | KL250 | |
| 1.2 | Power supply | Electric | |
| 1.3 | Operating type | Tow tugs | |
| 1.4 | Max traction weight | kg | 2500 |
| 1.5 | Rated pulling force | N | 800 |
| 1.6 | Wheelbase | mm | 620 |
| Weight | |||
| 2.1 | Truck weight（with battery） | kg | 250 |
| 2.2 | Battery weight | kg | 54 |
| Tyre | |||
| 3.1 | Tire type,Drive wheel/Bearing wheel | Rubber/PU | |
| 3.2 | Sizes of drive wheel（diameter×width） | mm | 2×Φ375×115 |
| 3.3 | Sizes of bearing wheel（diameter×width） | mm | Φ150×50 |
| 3.4 | Sizes of Supporting wheel（diameter×width） | mm | Φ100×50 |
| 3.5 | Drive wheel/bearing wheel number（×=Drive wheel） | mm | 2×/1 |
| 3.6 | Front gauge | mm | 720 |
| Dimensions | |||
| 4.1 | Overall height | mm | 1020 |
| 4.2 | Height of tiller in drive position | mm | 1020 |
| 4.3 | Hook height | mm | 235/285/335 |
| 4.4 | Overall length | mm | 1575 |
| 4.5 | Overall width | mm | 710 |
| 4.6 | Ground clearance | mm | 100 |
| 4.7 | Turning radius | mm | 1320 |
| Performance | |||
| 5.1 | Drive speed load/unload | km/h | 3～5 |
| 5.2 | Rated pulling force | N | 800 |
| 5.3 | Max pulling force | N | 1100 |
| 5.4 | Max gradeability load/unload | % | 10 |
| 5.5 | Brake type | Electromagnetic | |
| Motor | |||
| 6.1 | Drive motor rating S2 60min | kw | 1.2 |
| 6.2 | Charger (external) | V/A | 24/10 |
| 6.3 | Battery voltage/nominal capacity | V/Ah | 2×12/86 |
| 6.4 | Battery weight | kg | 54 |
| Others | |||
| 7.1 | Type of drive control | DC | |
| 7.2 | Steering type | Mechanics | |
| 7.3 | Noise level | dB（A） | <70 |
| 7.4 | Type of trailer coupling | Latch | |
KL250 2500KG Electric Tow Tug
