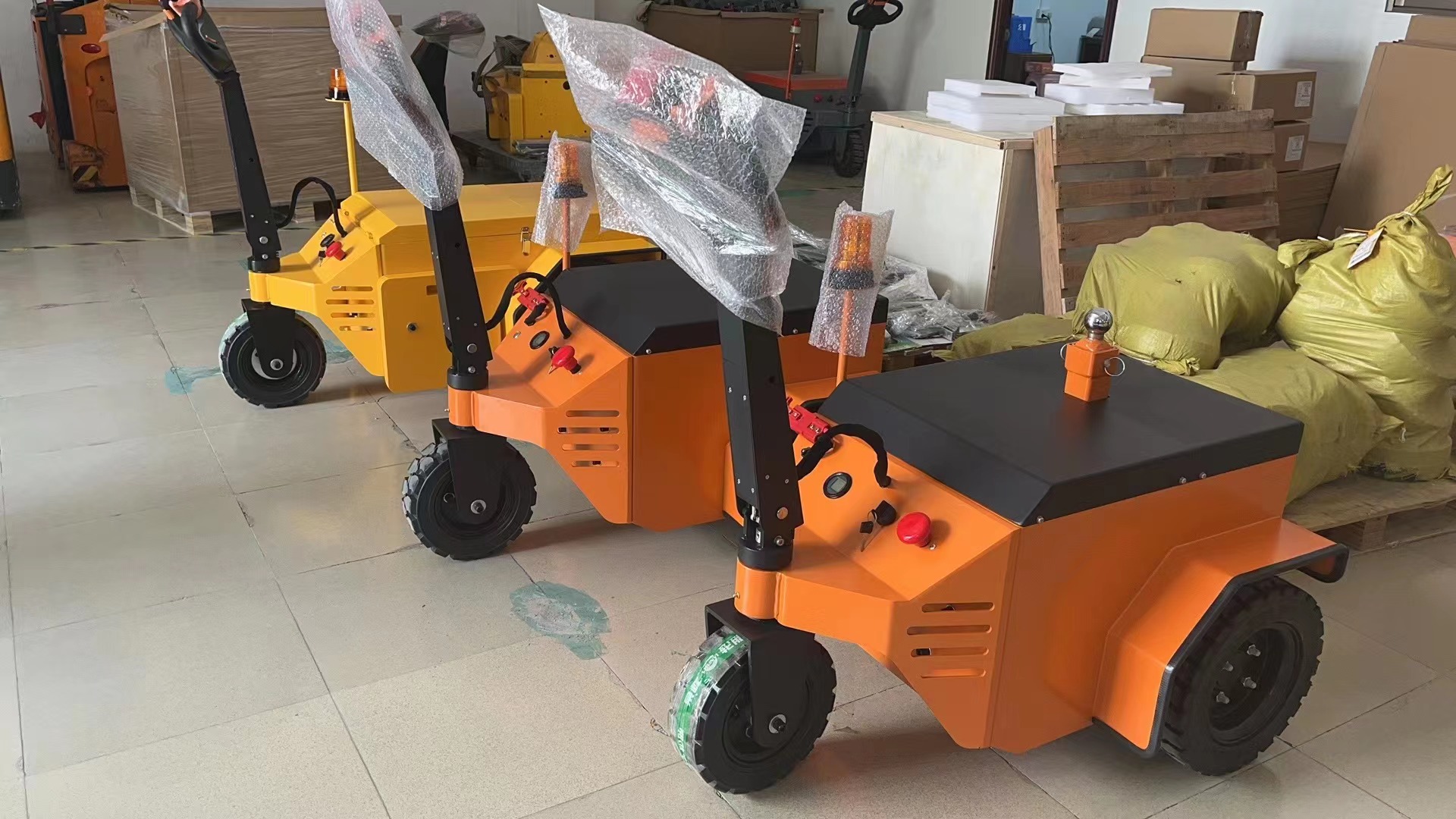

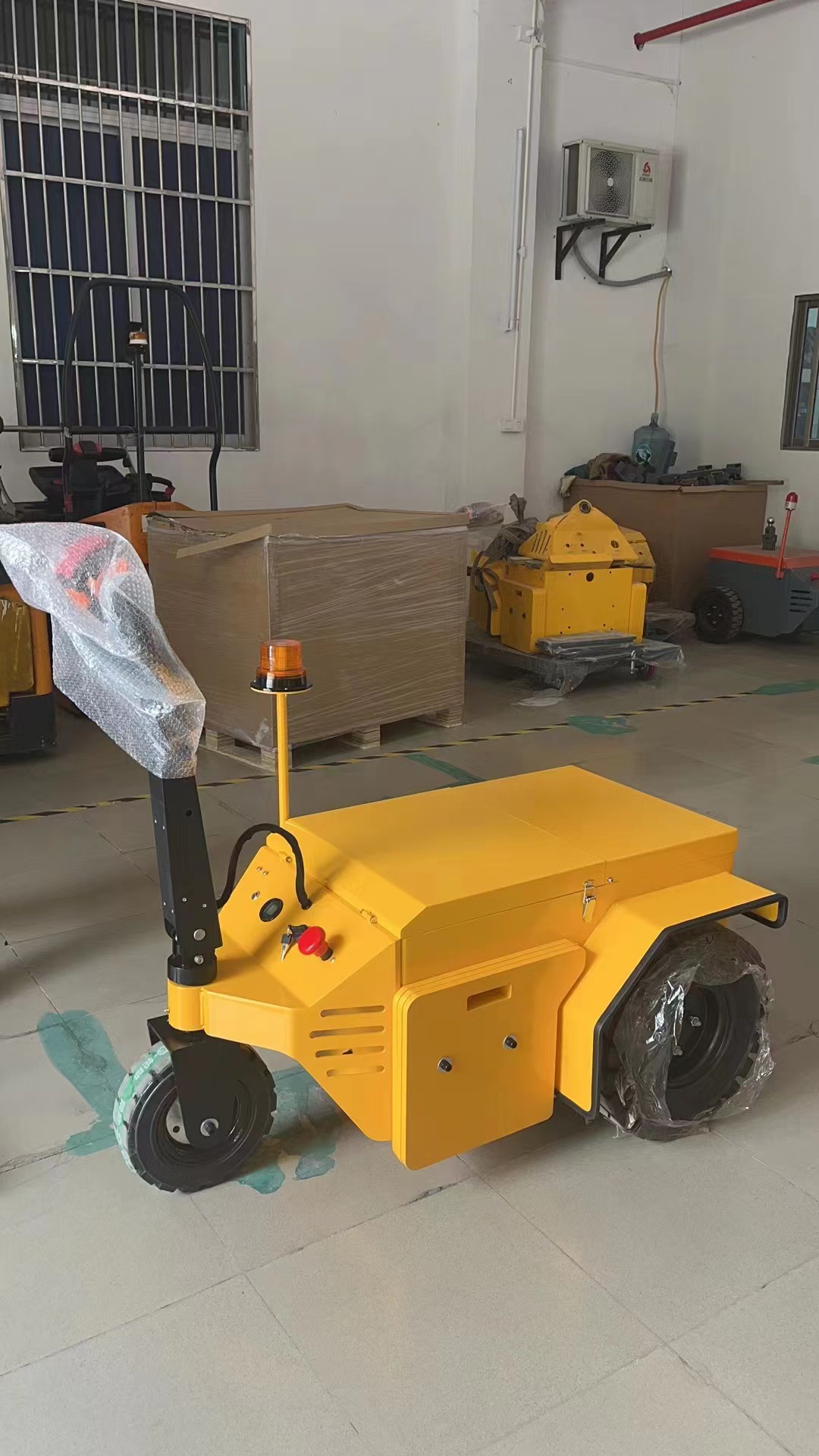

KL600A 6T Powered Tow Tug
| Technical Parameters | |||||
| Characteristic | |||||
| 1.1 | Model | KL600A | KL800A | KL1000A | |
| 1.2 | supply | Electric | Electric | Electric | |
| 1.3 | Operating type | Tow tugs | Tow tugs | Tow tugs | |
| 1.4 | Max traction weight | kg | 6000 | 8000 | 10000 |
| 1.5 | Rated pulling force | N | 2000 | 2500 | 3000 |
| 1.6 | Wheelbase | mm | 900 | 900 | 900 |
| Weight | |||||
| 2.1 | Truck weight（with battery） | kg | 550 | 685 | 735 |
| 2.2 | Battery weight | kg | 136 | 144 | 104 |
| Tyre | |||||
| 3.1 | Tire type,Drive wheel/Bearing wheel | Rubber | Rubber | Rubber | |
| 3.2 | Sizes of drive wheel（diameter×width） | mm | 2×Φ450×117 | 2×Φ450×117 | 2×Φ450×117 |
| 3.3 | Sizes of bearing wheel（diameter×width） | mm | Φ300×100 | Φ300×100 | Φ300×100 |
| 3.4 | Drive wheel/bearing wheel number（×=Drive wheel） | mm | 2×/1 | 2×/1 | 2×/1 |
| 3.5 | Front gauge | mm | 460 | 460 | 460 |
| Dimensions | |||||
| 4.1 | Overall height | mm | 1275 | 1275 | 1275 |
| 4.2 | Height of tiller in drive position | mm | 950/1200 | 950/1200 | 950/1200 |
| 4.3 | Hook height | mm | 260/310/360 | 260/310/360 | 260/310/360 |
| 4.4 | Overall length | mm | 1445 | 1445 | 1445 |
| 4.5 | Overall width | mm | 850 | 850 | 850 |
| 4.6 | Ground clearance | mm | 100 | 100 | 100 |
| 4.7 | Turning radius | mm | 1195 | 1195 | 1195 |
| Performance | |||||
| 5.1 | Drive speed load/unload | km/h | 3～5 | 2～4 | 2～4 |
| 5.2 | Rated pulling force | N | 2000 | 2500 | 3000 |
| 5.3 | Max pulling force | N | 3500 | 4500 | 4500 |
| 5.4 | Max gradeability load/unload | % | 8/30 | 8/30 | 8/30 |
| 5.6 | Brake type | Electromagnetic | Electromagnetic | Electromagnetic | |
| Motor | |||||
| 6.1 | Drive motor rating S2 60min | V/kw | 24/2.2 | 24/2.5 | 48/3.0 |
| 6.2 | Charger (external) | V/A | 24/30 | 24/30 | 48/15 |
| 6.3 | Battery voltage/nominal capacity | V/Ah | 4×6/203 | 4×6/240 | 4×12/83 |
| 6.4 | Battery weight | kg | 136 | 144 | 104 |
| Others | |||||
| 7.1 | Type of drive control | AC | AC | AC | |
| 7.2 | Steering type | Mechanics | Mechanics | Mechanics | |
| 7.3 | Noise level | dB（A） | <70 | <70 | <70 |
| 7.4 | Type of trailer coupling | Latch | Latch | Latch | |
