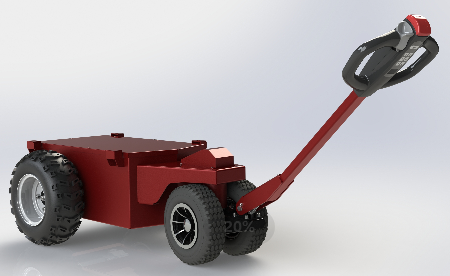

E FARM CART 500KG Capacity
KE-E FARM CART 500KG delivery milk on the Farms
|
Products Details |
|
|
Motor: |
500W |
|
Capacity: |
400 KGS |
|
Product Size: |
L1250mm * W780mm * H1250mm |
|
Controller： |
Curtis 24V 90A |
|
Climbing Ability： |
400 KGS 8°（5 Meter） |
|
Speed: |
1.5~6 Km/h |
|
Driving Wheel: |
16 Inch Pneumatic Tyre |
|
Steering Wheel: |
12 Inch Pneumatic Tyre |
|
Lead-Acid Battery: |
24V 52Ah |
|
Endurance: |
3.5 H（Full Loading，Max Speed 25℃ Flat Road） |
|
Charger: |
24V 5A |
|
Charging Time: |
8~10 h |
Products Feature:
Swing arm handle: suitable for people of different heights and easier to use.

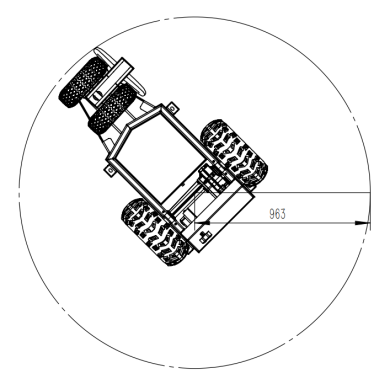

Super large steering angle and super small steering radius: steering is easier and more flexible. (turning radius: 970mm)
Structure strengthening: strengthen the steering structure and the steering wheel bearing. The leather is solid and durable.
IP54 protection control handle: meet customers' needs for better protection
Strengthen the rear axle structure, increase the driving wheel and motor power: greater torque, better trafficability and better ability to overcome bad road conditions.
Increase the battery capacity and controller power: the battery is increased to 24V 52ah and the controller is increased to 24V 90a, with stronger climbing ability and endurance
Integral seal cover plate:
Without wires exposed
The protection is better, and it will not easily enter water in rainy days.

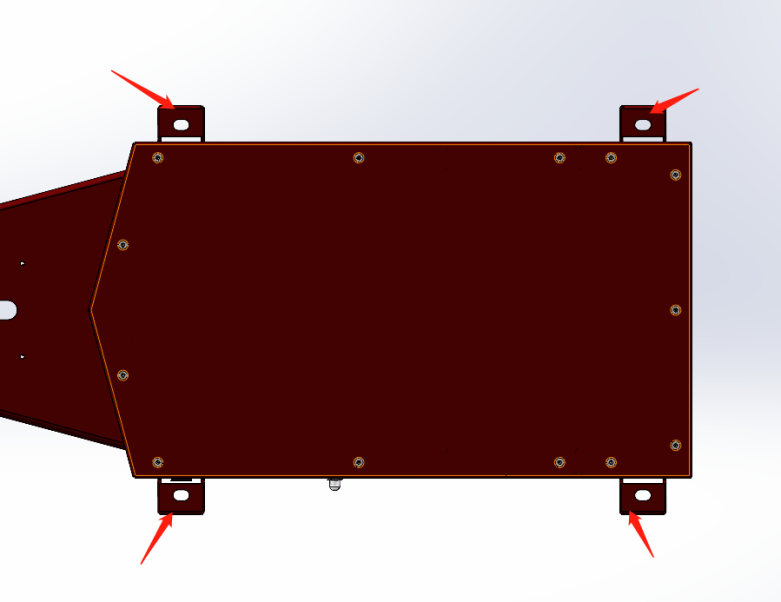

Pre mounting holes can be customized to facilitate the installation of accessories.
Optional: It can be sprayed after hot galvanizing, and the corrosion resistance of the frame can reach more than 5 years without rust
Widly used for farm yard
